Special dosing crane

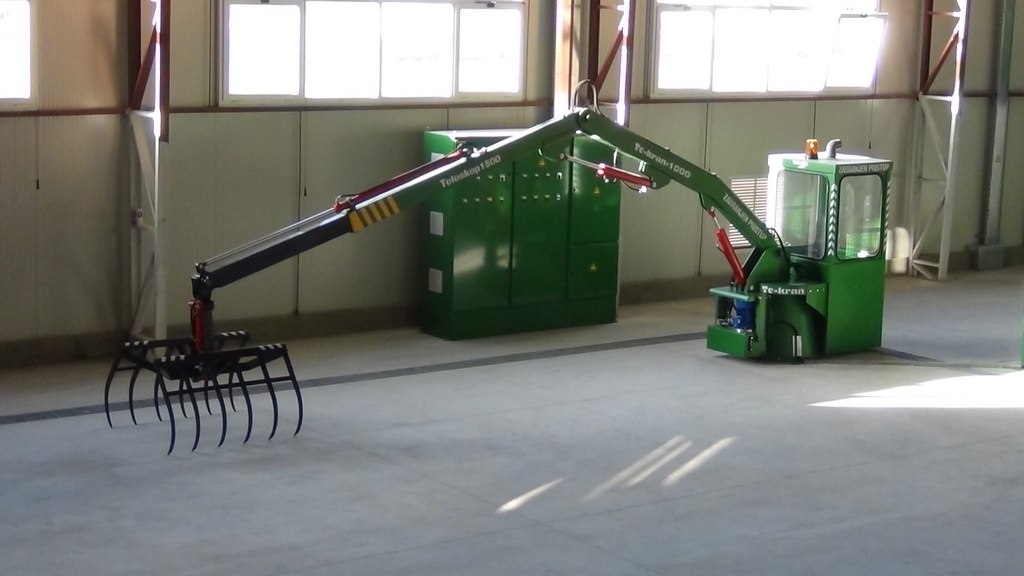

A crane is a device for handling separately collected municipal waste. The crane is placed next to the receiving hatch of the sorting plant

1.00 kn 1.0 HRK 1.00 kn

1.00 kn

This combination does not exist.

ADD TO CART

Special dosing crane

1.00 kn

Add to Cart

SKU:

N/A

30-day money-back
7-day returns
Shipping: 2-3 Days

Description

Due to the fact that it is impossible to time the constant flow of municipal waste from the vehicle - collector, it is very easy to accumulate the imported waste in front of the suction-dosing chamber.

In order to avoid the manual transfer of the accumulated waste into the suction-dosing chamber, as well as the need for special vehicles, a crane, a device for handling separately collected municipal waste, is placed on the front side.

It completely eliminates the need for additional costs in the form of purchasing special vehicles, the air inside the plant remains clean and noise is completely eliminated because power units with internal combustion engines are turned off.

Advantages and benefits

Efficient handling of separated waste: The crane enables efficient and quick handling of separately collected municipal waste without the need to manually transfer the material into the suction-dosing chamber. This increases productivity and optimizes the sorting work process.
Elimination of the need for special vehicles: By placing the crane on the side front, the need for special vehicles to transfer waste from the vehicle - collector to the sorting plant is eliminated. This approach reduces the cost of acquiring and maintaining additional vehicles.
Keeping the air clean inside the plant: By using a crane instead of a pre-timed inflow of waste from a vehicle, the air inside the plant remains clean. This contributes to the preservation of air quality in the working environment, which is especially important for workers in the sorting plant.
Noise elimination: The use of a crane eliminates the noise that would otherwise be generated during the operation of power units with internal combustion engines. This improves working conditions for employees and can reduce the negative impact on the environment. Reduction of operating costs: Using a crane as a handling device reduces the operating costs of waste sorting, including the cost of maintaining additional vehicles and fuel consumption. This approach makes the sorting plant maintenance process more economical.
Reduction of operating costs: Using a crane as a handling device reduces the operating costs of waste sorting, including the cost of maintaining additional vehicles and fuel consumption. This approach makes the sorting plant maintenance process more economical.

Technical specifications

MODEL		T – 1000	T – 1500	MT – 2000
Stand rotation	°	180	180	180
Maximumi ntervention	m	6,5	8	9
Minimal intervention	m	2,5	4,5	2,5
Transverse shift	m	NEMA	NEMA	6,0 – 24,0
Grip capacity	m³	0,5	1	1,5
The length of the catch basket	mm	1000	1500	1500
Width of catch basket - closed	mm	700	700	1000
Width of catch basket - open	mm	1650	1400	1700
The height of the catch basket	mm	750	900	900
Handling capacity	m³ / h	11	20	29
Installed power of the driving electric motor	kW	4	4	4
Capacity of the drive hydraulic pump	lit/min	14	21	25
